Module BLE + connecteur JTAG BLE

Remarque: CE COMPOSANT EST UTILISE DEPUIS LA v1.3

Connectique LPC1769

Port LPC1769	Nom signal	Fonction
P0.0	BLE_UART_RX	UART
P0.1	BLE_UART_TX	UART
-	BLE_UART_RTS	UART
-	BLE_UART_CTS	UART

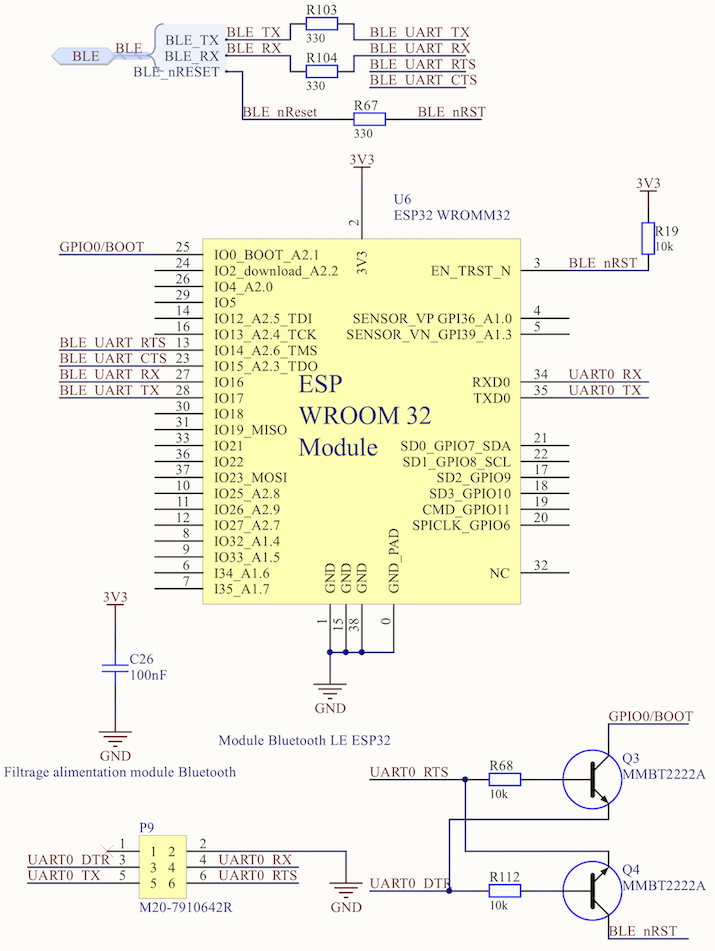

Schématique

Référence: ESP32

Datasheet: https://hepialsn.hesge.ch/myLab2/datasheets/Bluetooth_esp32-wroom-32.pdf

Commandes AT: https://hepialsn.hesge.ch/myLab2/datasheets/Bluetooth_esp32-AT_instructions.pdf
